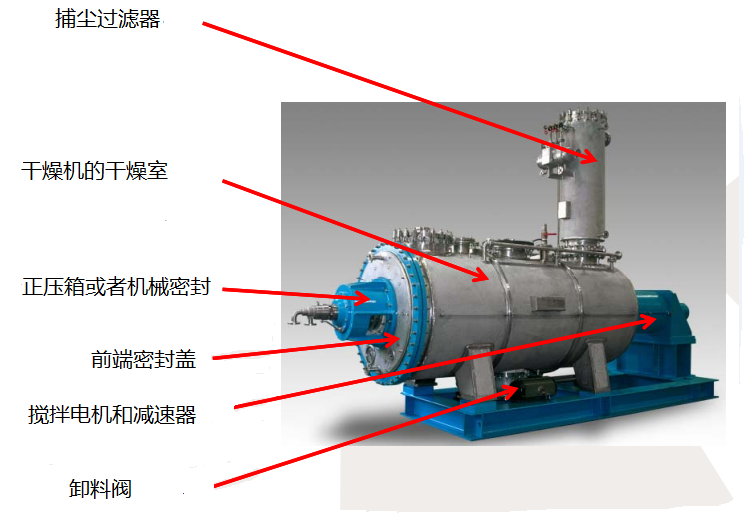

Chemical rake vacuum dryer/
Product model:
TM1500 ~ TM15000
Parameters:
Heating area - 9.0 ~ 54.7 M2
Usable volume - 1100 ~ 14300 L
Product features:
1. It is widely used in chemical industry
2. It has many functions and can be used as dryer or reactor
3. The materials shall be well protected, and the materials shall be prevented from caking by slow mixing
4. High working efficiency and large mixing area. All parts in contact with materials have the function of heating materials
Technology Extension:
A filter is installed on the upper part of the dryer to prevent the vacuum pump from pumping away the dried material particles during the drying process. The pore diameter of the filter element is selected according to the diameter of the particles of the dried material. The filter has the function of nitrogen back blowing and cleaning.
Information required for model selection:
1. Moisture content of material
2. Viscosity of the material (so as to judge whether the material is suitable for drying by this kind of dryer);
3. Normal distribution of material crystal particle diameter (so as to select the filter element of the filter);444. The amount of materials to be dried every day (in order to calculate the
4. amount of drying each time, and then the capacity of the dryer can be selected);
5. Physical properties of the material (if it is sensitive to temperature, the drying temperature needs to be controlled);
6. Chemical characteristics of dry materials and solvents (acid or alkali corrosivity, oxidizability, toxicity, etc.);
7. Equipment placement space and environment
