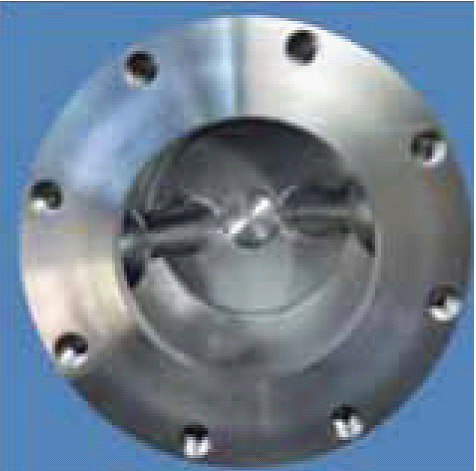

Ball Segment Valve (
The valve that meets the market demand of the process industry
From the 1st of June 2009 HEINKEL Process Technology GmbH hastaken over the Ball Segment Valve business from Techno-G, The Netherlands.The experienced team around the Ball Segment Valve remains unchanged.
HEINKEL will provide you with a perfect product, supported by a professional project team starting with the inquiry, through delivery to installation and continued support through the BSV life. The Ball Segment Valve has been developed to meet the unique process requirements of vacuum drying and pressurized process reactors. From experience gained in the field, it is now being supplied as a stand-alone component for a far broader range of applications. The valve seats are machined to very fine tolerances and this, combined with special bearings provides an excellent vacuum and pressure tight seal. The standard inflatable seal design will meet the demand of individual processes and product requirements.
HEINKEL will provide you with a perfect product, supported by a professional project team starting with the inquiry, through delivery to installation and continued support through the BSV life. The Ball Segment Valve has been developed to meet the unique process requirements of vacuum drying and pressurized process reactors. From experience gained in the field, it is now being supplied as a stand-alone component for a far broader range of applications. The valve seats are machined to very fine tolerances and this, combined with special bearings provides an excellent vacuum and pressure tight seal. The standard inflatable seal design will meet the demand of individual processes and product requirements.
Standard specifications:
Valve size 150 to 400 mm (6" to 16")
Flanges According to DIN, ANSI and as
tri-clamp execution
Material 1.4404 (316L), 1.4571(316Ti),
2.4602 (HC22)
Inflatable seal EPDM, Viton® (FKM),
Perlast®(FFKM)
Operation temp. –10°C to 135°C (14°F to 275°F)
Operation pressure –1 to +6 bar (90 Psig)
Atex According to Atex 94 / 9 / EG
