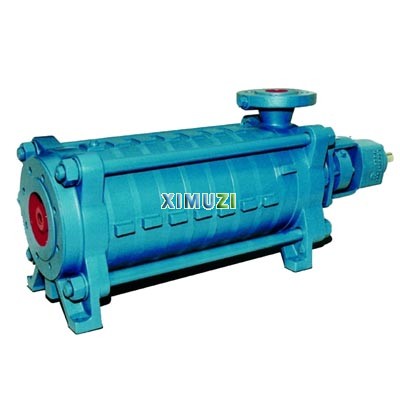

The SIHI range of horizontal or vertical, ring-section multistage pumps are for high pressure applications and meet the technical requirements of ISO 5199/EN 25199. By adopting an advanced modular design, the number of parts is reduced whilst maximising interchangebility. Optimal selection of impeller diameter and diffuser size ensures that the pump closety matches the required duty conditions.
For the MSL, MSM and MSV range the axial thrust is batanced by a newly designed and patented drum system that does not need tight, wear-sensitive running clearances to efficiently control re-circulation flow in the balance line. The MSH range is designed for high pressure applications and the axial thrust is balanced by the combination of the drum and disc.
The SIHI range have optional design features avaitable including: various nozzle positions, choice of shaft sealings, a stage reduction capability, a balance disc lift-off capability and inboard and outboard anti-friction bearings.
more...for less... ·Reduced life-cycle costs
- Enhanced efficiency with innovative axial thrust balancing
- Only one shaft seal
- Lower power consumption
- High reliability ·Ease of maintenance
- Simple dismantling and assembly ·Minimised wear
- Reduced usage of spare parts costs ·Global service network
- Established local Service Centres around the world
