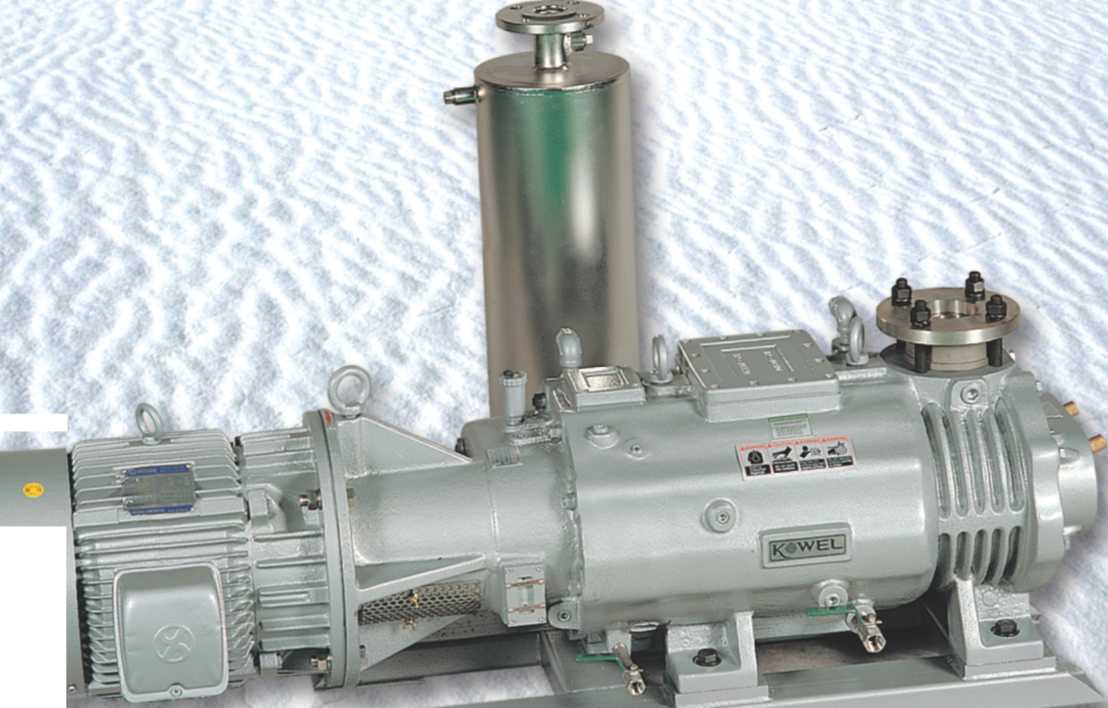

Korea Cowell dry screw
● low power consumption, 30% lower than the current design, saving a lot of efficiency costs.
● greatly reduce the exhaust temperature, close to the requirements of T4.
● improved performance and vacuum level.
● small and compact design reduces installation space.
● most of them adopt c-flange design, which simplifies the installation and reduces the noise level, and there is no need for shaft positioning.
● exhaust cooling purification is not required. (for sizes H120, H200 and h320)
● features of screw type dry vacuum pump include:
● dry operation without oil and water realizes a clean vacuum environment.
● there is no metal contact between the screw and the shell to ensure the long service life of the pump.
● the newly designed screw rotor has high volumetric efficiency.
● oil or water is not used as the transmission medium of the pump, which reduces the operation cost.
● single stage design makes it easy to discharge solid waste and eliminate residues in the pump.
● the air passage through the pump is short, so the gas can be discharged quickly
● after adopting optional special coating, it is suitable for extracting toxic gas, corrosive gas and condensable gas.
● simple design, easy implementation and maintenance.
● low speed to achieve low vibration and low noise level.
● mechanical seal to prevent leakage.
New technology kdph series
SpecificationSpecifications
|
Typetype SpecificationSpecifications |
KDPH 120 |
KDPH200 |
KDPH 320 |
KDPH 430 |
KDPH 800 |
|
|
Nominal displacementNominal displacement 50Hz/60Hz (m7hr) 50 Hz / 60 Hz (m3 / h) |
100/120 |
155/187 |
267/320 |
358/430 |
625/750 |
|
|
Ultimate Pressure(Torr) Limit pressure (Torr) |
0.02 |
0.02 |
0.02 |
0.02 |
0.01 |
|
|
Power (kW / HP) |
2.2/3.0 |
5.5/7.5 |
7.5/10 |
11/15 |
15/20 |
|
|
Rotation (R.P.M)50/60Hz Rotation (revolutions per minute) 50 / 60 Hz |
2900/3500 |
|||||
|
Port sizePort size |
Suction (A)suction(A) |
40 |
40 |
50 |
65 |
100 |
|
|
Discharge (A)discharge(A) |
40 |
40 |
40 |
50 |
65 |
|
Cooling Water(t/min)Cooling water (T / min) |
2 |
4 |
8 |
11 |
20 |
|
|
|
Front End PlateFront cover plate |
Plate Spring type Mechanical Seal & Lip seal Leaf spring mechanical seal or lip seal |
||||
|
Seal Type |
Rear End PlateRear end cover plate |
Triple Lip Seal + Lantern RingThree lip seal + collar |
||||
|
密封类型
|
Front End Cover (Drive Shaft)Front end cover (drive shaft) |
Plate Spring type Mechanical SealLeaf spring mechanical seal |
||||
|
Weight (Pump only)Weight (pump weight only) |
180Kg |
220Kg |
280Kg |
350Kg |
550Kg |
|
❖ Technical specifications for improving product quality are subject to change without notice.
|
Typetype Specification规格 |
KDPH 1500 |
KDPH 2700 |
|
|
Nominal displacementNominal displacement 50Hz/60Hz (m7hr)50Hz / 60 Hz (m3 / h) |
1300/1500 |
2250/2700 |
|
|
Ultimate Pressure (Torr)Limit pressure (Torr) |
0.1 |
0.1 |
|
|
Power (Kw/ Hp)Power (kW / HP) |
37/50 |
55/75 |
|
|
Rotation (R.P.M)50/60Hz Rotation (revolutions per minute) 50 / 60 Hz |
1450/1750 |
||
|
Port size端口尺寸 |
Suction (A)吸力(A) |
125 |
150 |
|
|
Discharge (A)排放(A) |
80 |
100 |
|
Cooling Water (£/min)Cooling water (T / min) |
28 |
36 |
|
|
|
Front End PlateFront cover plate |
Mechanical Seal & Lip sealMechanical seal or lip seal |
|
|
Seal Type密封类型 |
Rear End PlateRear end cover plate |
Lip Seal + Lantern RingLip seal + collar |
|
|
|
Front End Cover (Drive Shaft) Front end cover (drive shaft) |
Mechanical Sealmechanical seal |
|
|
Weight (Pump only)Weight (pump weight only) |
1050Kg1050Kilogram |
1350Kg1350Kilogram |
|
❖Technical specifications for improving product quality are subject to change without notice.

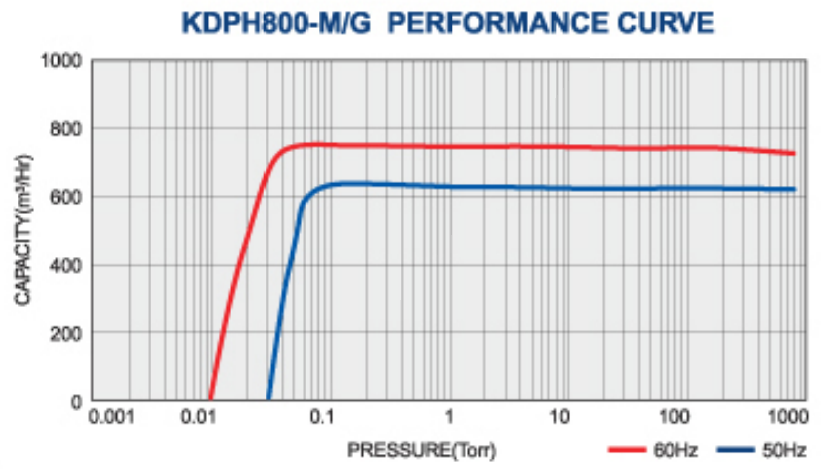

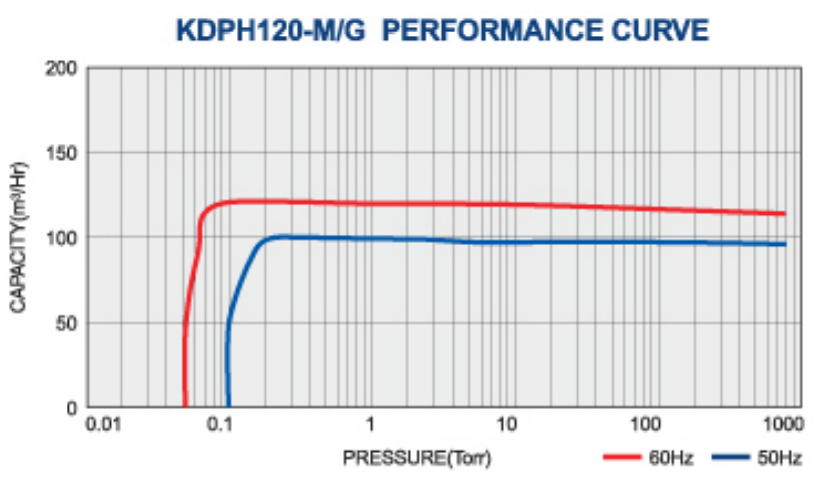

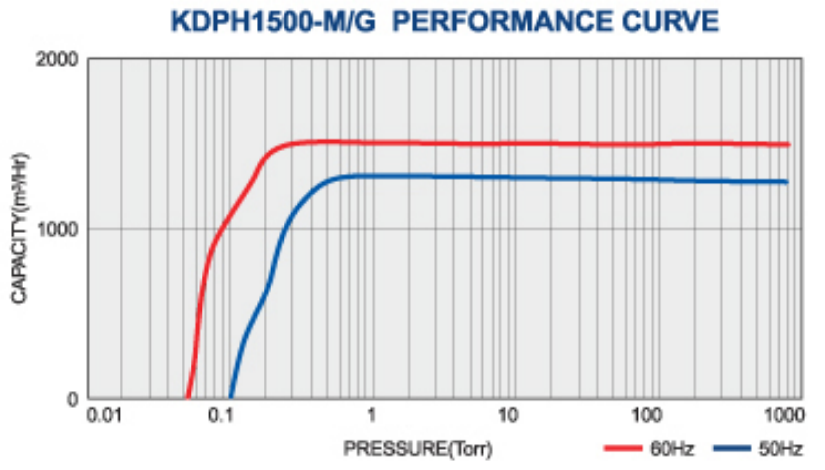

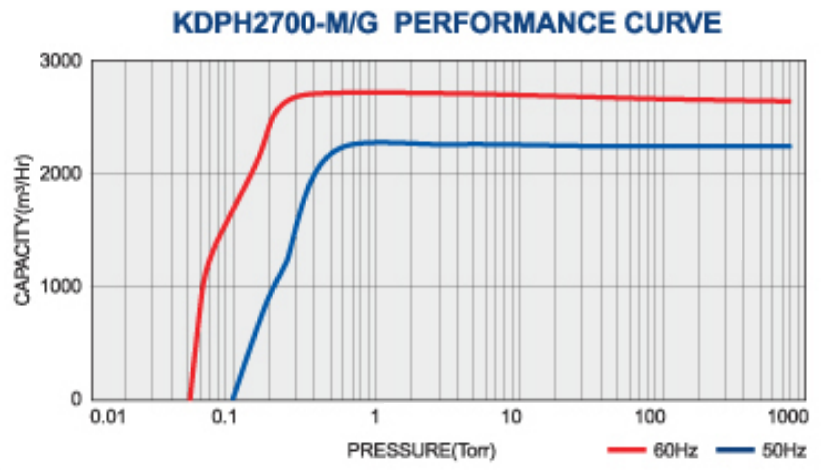

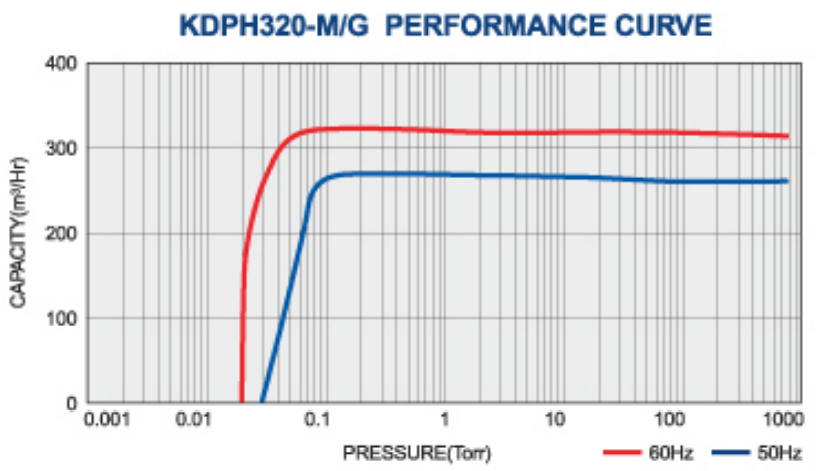

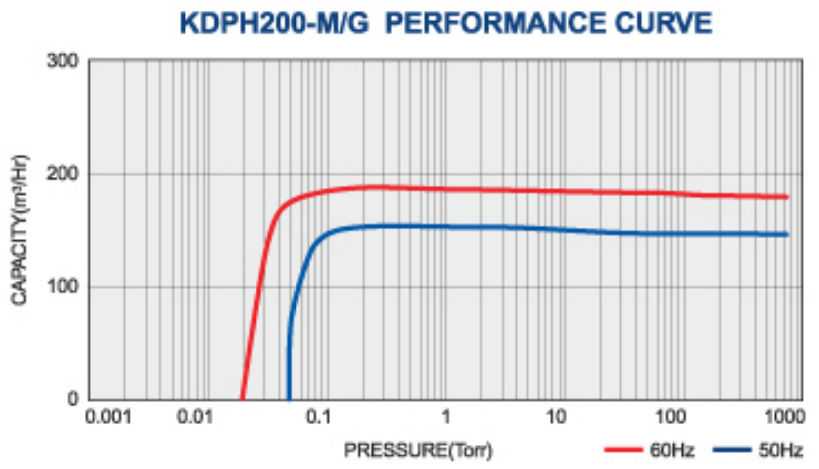

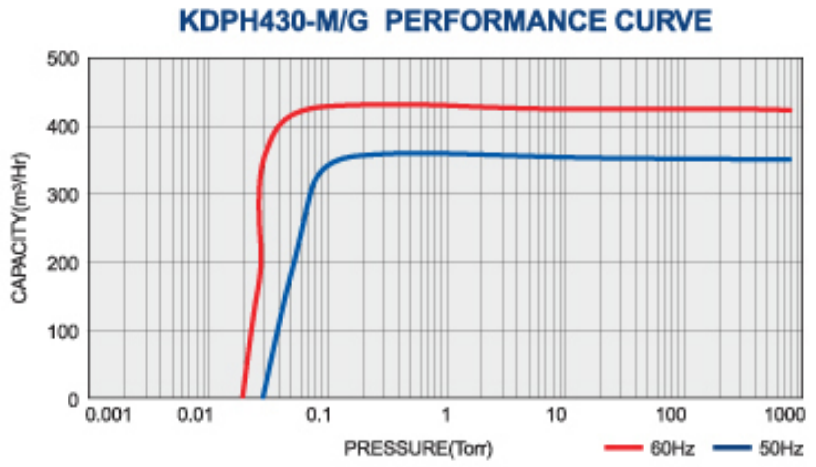

New technology kdph series performance curve

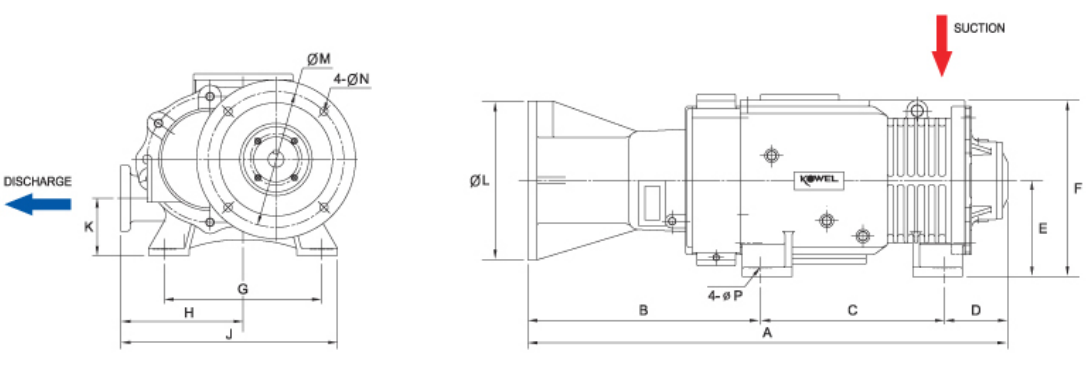

Outline dimension drawing
|
Model model/Sizesize |
A
|
B |
C |
D |
E |
F |
G |
H |
J |
K |
ΦL |
ΦM |
ΦN |
ΦP |
|
KDPH120 |
621 |
328 |
200 |
93 |
140 |
262 |
260 |
150 |
300 |
50 |
250 |
215 |
14 |
14 |
|
KDPH200 |
760 |
348 |
301 |
111 |
163 |
294 |
248 |
204 |
355 |
95 |
250 |
215 |
14 |
19 |
|
KDPH320 |
857.5 |
404.5 |
334 |
119 |
178 |
326 |
270 |
225 |
380 |
97 |
300 |
265 |
14 |
19 |
|
KDPH430 |
993 |
468 |
392 |
133 |
192 |
352 |
310 |
255 |
445 |
96 |
350 |
300 |
18 |
19 |
|
KDPH800 |
1131 |
514 |
407 |
140 |
211.5 |
388 |
348 |
270 |
479 |
126 |
350 |
300 |
18 |
22 |
